T Box – The award-winning transport solution

A maximum of robustness, load capacity, practical handling and comfort – these were the requirements for the bwh’s own development department for the concept of the T Boxes. The result is a new transport case series, whose quality and reliability are unique in the industry.

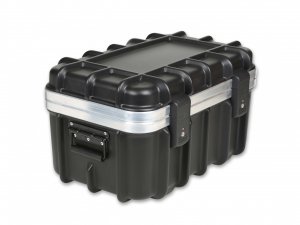

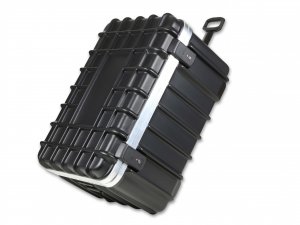

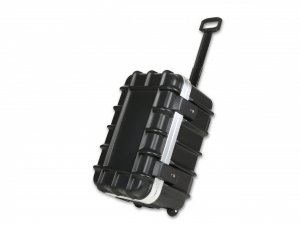

T Box

The T Box, available in three different sizes, has outstanding features and a distinctive design, registered for design protection, which guarantees high torsional rigidity by ribbing the sturdy HDPE plastic.

The checkerboard pattern on the top and bottom ensures safe and space-saving stacking of the boxes. The T Box series is full of other innovative ideas: New aluminum profiles, waterproof rivets, a new patented lock system and new plastic hinges, whisper rollers and extra-sturdy pull-out handles..

A newly developed, heavy-duty aluminum profile offers the possibility of the box still additionally provided with stiffening and insertion profiles as a support for mounting plates. The hinges with an installation angle of 93° have also been specially developed for the T Box. For security against unauthorized access to the transported goods provides a patented train lock with TSA function, also developed by bwh Koffer and well proven..

T Box creates new standards for industrial use

The T Box is available in 3 standard sizes (with or without rollers) from the purchase quantity of 1 piece. From a quantity of 100 pieces you can have the transport box built by us in your very individual desired dimensions.

Not only we are enthusiastic about the T Box, but also the jury of pro-k. Our box promptly won the pro-k award for design and functionality in 2020.

Read all about the award here.

Get a consultation now
Transportbox T Box

Product features of the T Box

Product features of the T Box

Technical data of the T Box

Design: Thermo formed plastic case
Case size: Individual sizes from a quantity of 100 pieces (width, length and height)
Material: HDPE
Design options: Stickers, screen printing, printing, embossing
Profiles: Aluminium
Handles & rollers: Heavy-duty castors, stable pull-out handle, optionally with whispering rolls
Locks: Lockable
Temperature resistance: -30°C to +85°C
Tested according to: MIL STD 810G, ATA Spec. 300 Cat. 1
Awards: pro K Award 2020
Special features: Watertight rivets, stackable sizes, adapted to Euro pallet dimensions

Downloads

Curious about even more transportation solutions?

On our overview transport solutions you can find more transport cases and transport boxes from our range.

Benefit from our experience

bwh team

Made in Germany

Custom made special cases

Advice and consultant

Personal support

Any more questions? Feel free to contact us!

Contact us

Available standard sizes of the T Box
